JH011500501

Rated Voltage：24V

Operational Speed：≥0.5mm/s

Stroke：≤6.8mm

Operating Current：≤0.2A

Installation Dimensions：S?10_-0.1⁰

Built-in

Pull&Push：≥40N

JH011701601

Rated Voltage：24V

Operational Speed：≥0.5mm/s

Stroke：≤4.8mm

Operating Current：≤0.2A

Installation Dimensions：M5*0.8-6g

External

Pull&Push：≥40N

JH011900101

Rated Voltage：24V

Operational Speed：≥0.5mm/s

Stroke：≤7mm

Operating Current：≤0.2A

Installation Dimensions：S?10^+0.1₀

External

Pull&Push：≥40N

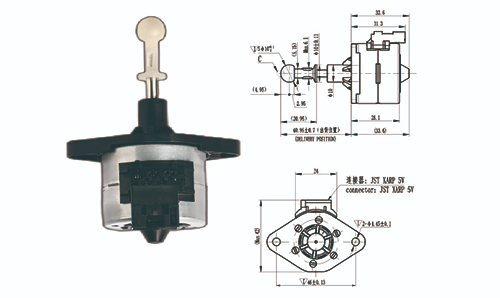

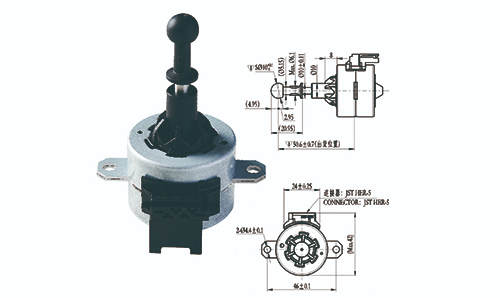

JH.02.06.003-06

Excitation Method:Bipolar Constant Current Driving

Nominal Current/Phase(IN)：566mA

Phase Quantity：2 Phase相

Stepping Angle：15°

Linear Travel per Full Step:1/30mm

Resistance per Coil：6.9±10%Ω

Phase Inductivity：Max.12mH(1000Hz)

Stroke：12±0.35 mm

Delivery Position：50.6±0.7mm

Axial Play of The Shaft：≤0.15mm

Push-pull Force：(常溫：≥50N)Tmin/Tmax:≥30N

Maximum Axial Installation Force：200N max

Sound Level：0.5m,≤43dB,10N

Nominal Frequency]：300pps(整步),600pps(1/2步)

JH.02.06.003-05

Excitation Method:Bipolar Constant Current Driving

Nominal Current/Phase(IN)：566mA

Phase Quantity：2 Phase相

Stepping Angle：15°

Linear Travel per Full Step:1/30mm

Resistance per Coil：6.9±10%Ω

Phase Inductivity：Max.12mH(1000Hz)

Stroke：12±0.35 mm

Delivery Position：40.95±0.7mm

Axial Play of The Shaft：≤0.15mm

Push-pull Force：(常溫：≥50N)Tmin/Tmax:≥30N

Maximum Axial Installation Force：200N max

Sound Level：0.5m,≤43dB,10N

Nominal Frequency]：300pps(整步),600pps(1/2步)

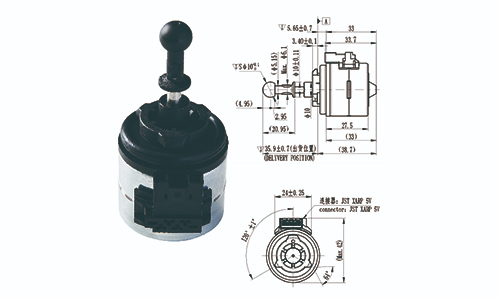

JH.02.06.003-04

Excitation Method:Bipolar Constant Current Driving

Nominal Current/Phase(IN)：566mA

Phase Quantity：2 Phase相

Stepping Angle：15°

Linear Travel per Full Step:1/30mm

Resistance per Coil：6.9±10%Ω

Phase Inductivity：Max.12mH(1000Hz)

Stroke：12±0.35 mm

Delivery Position：40.95±0.7mm

Axial Play of The Shaft：≤0.15mm

Push-pull Force：(常溫：≥50N)Tmin/Tmax:≥30N

Maximum Axial Installation Force：200N max

Sound Level：0.5m,≤43dB,10N

Nominal Frequency]：300pps(整步),600pps(1/2步)

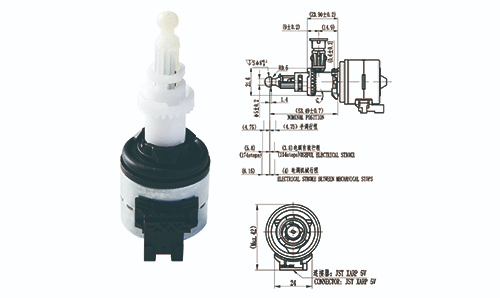

JH.02.06.003-03

Excitation Method:Bipolar Constant Current Driving

Nominal Current/Phase(IN)：566mA

Phase Quantity：2 Phase相

Stepping Angle：15°

Linear Travel per Full Step:1/30mm

Resistance per Coil：6.9±10%Ω

Phase Inductivity：Max.12mH(1000Hz)

Stroke：Electrical 10.15±0.35mm

              Manual 9.5±0.2

Delivery Position：53.49±0.7mm

Axial Play of The Shaft：≤0.15mm

Push-pull Force：(常溫：≥50N)Tmin/Tmax:≥30N

Maximum Axial Installation Force：300N max

Sound Level：50cm,≤45dB,10N

Nominal Frequency]：300pps(整步),600pps(1/2步)

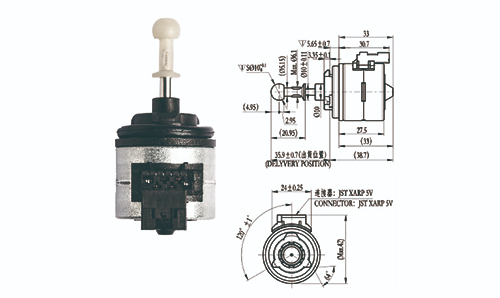

JH.02.06.003-02

Excitation Method:Bipolar Constant Current Driving

Nominal Current/Phase(IN)：566mA

Phase Quantity：2 Phase相

Stepping Angle：15°

Linear Travel per Full Step:1/30mm

Resistance per Coil：6.9±10%Ω

Phase Inductivity：Max.12mH(1000Hz)

Stroke：12.5±0.2 mm

Delivery Position：35.9±0.7mm

Axial Play of The Shaft：≤0.15mm

Push-pull Force：(常溫：≥50N)Tmin/Tmax:≥30N

Maximum Axial Installation Force：200N max

Sound Level：0.5m,≤43dB,10N

Nominal Frequency]：300pps(整步),600pps(1/2步)

JH.02.06.003-01

Excitation Method:Bipolar Constant Current Driving

Nominal Current/Phase(IN)：566mA

Phase Quantity：2 Phase相

Stepping Angle：15°

Linear Travel per Full Step:1/30mm

Resistance per Coil：6.9±10%Ω

Phase Inductivity：Max.12mH(1000Hz)

Stroke：12.5±0.2 mm

Delivery Position：40.95±0.4mm

Axial Play of The Shaft：≤0.15mm

Push-pull Force：(常溫：≥50N)Tmin/Tmax:≥30N

Maximum Axial Installation Force：200N max

Sound Level：0.5m,≤43dB,10N

Nominal Frequency]：300pps(整步),600pps(1/2步)

JH030100101

Operating Voltage Range：9-16V

Rated Voltage：13.5V

Locked Rotor Current：150~360mA

Switching Time：≤160ms

Switching Angle：(55±2)o

Noise：Back Noise<40dB,Distance0.25m,Noise≤80dB

Product Life：500000次

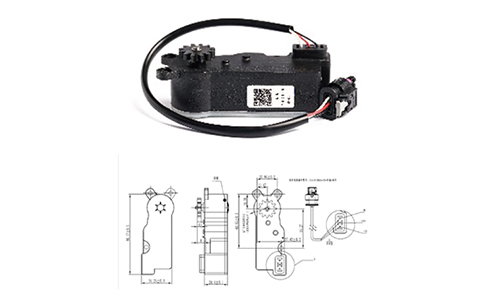

Charging port cover

Rated Voltage: 12V

Operating: Voltage Range 9V～16V

Operating: Current 50mA～250mA

Dark Current: ≤ 30mA

Stall Current: ≤ 800mA  （13.5V）

Clutch torque: 1.7N.m～3.4N.m

Working Speed: 10RPM～17RPM

Rated Load: 0.3N.m

Stuck torque: 0.5N.m～1.6N.m

Follow-open or close function: 1s, 3.4N.m

Prevent hand injury function: （10°-80°） ≤1.5N.m

Working Noise: ≤55dB, 400mm

Durability cycle: 20000 cycle

9.51.01.011.001.01

Excitation Method：Bipolar Constant Current Driving

Nominal Current/Phase(IN)：360mA

Phase Quantity：1-2 Phase

Stepping Angle：15o

Linear Travel per Full Step：0.0363±0.026mm

Resistance per Coil：7.9±0.6Ω

Phase Inductivity：8±15%mH(1000Hz)

Stoke：11(+0.2,-0.4)mm

Delivery Position：34±0.3mm

Axial Play of The Shaft：≤0.2mm

Push-pull Force（Homoiothermy:≥30N）Tmin/Tmax:≥25N

Maximum Static Axial Force：300N

MaxSound Level：0.25m,≤60dB,15N

Nominal Frequency：200pps（Whole step）,800pps（1/4step）

Gas-tightness: Input 70kPa gas,keep the pressure for 20s,the pressure:≥68.6kPa
